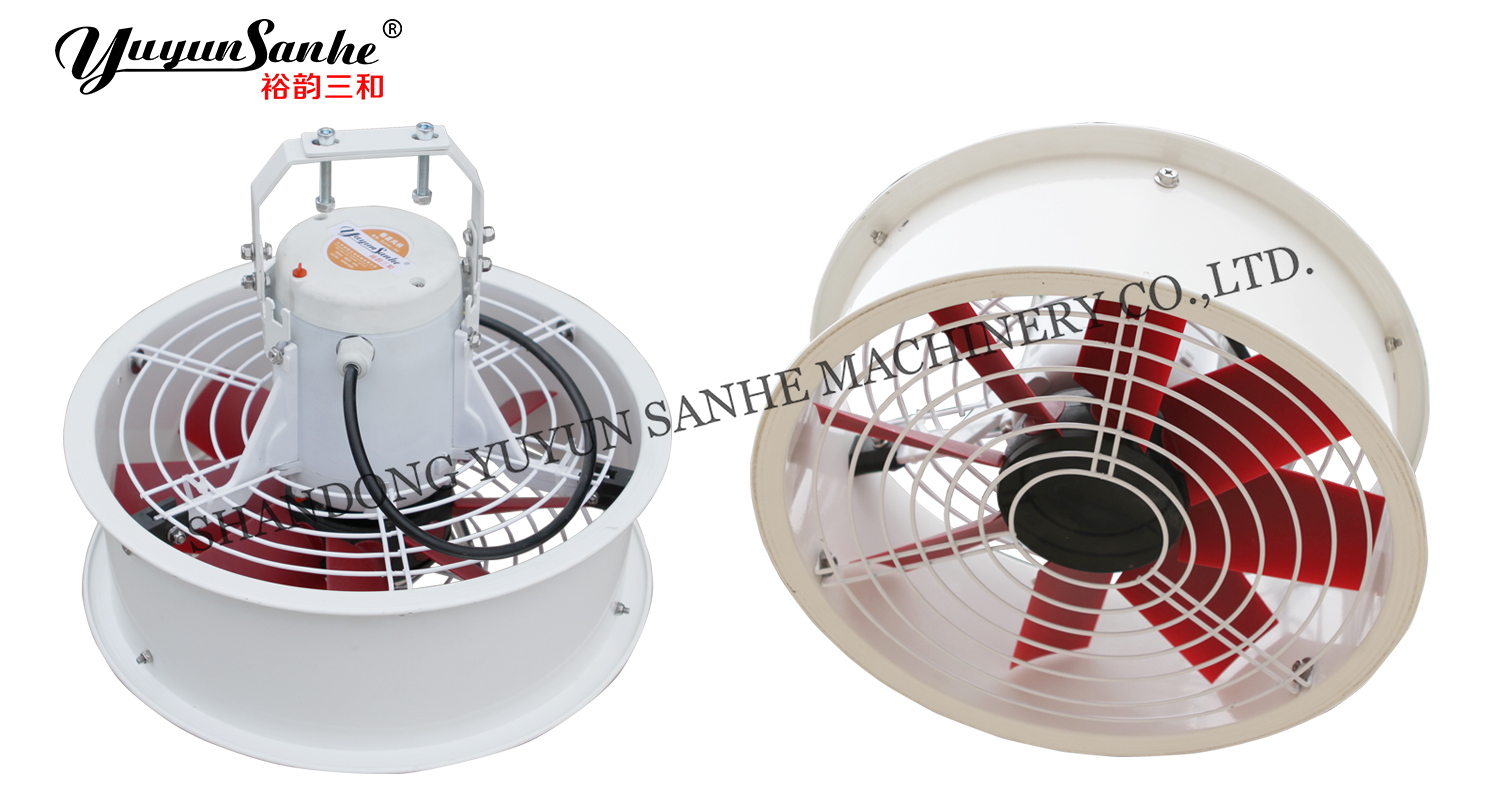

Greenhouse Fan Vertical Circulation Fan for Greenhouse Ventilation
Fan Brand | Yuyun Sanhe |
Fan Model | DJF(g)-4 |
Outline Size | 460mm |
Blades Diameter | 400mm |
Frame Material | Galvanized Steel with Plastic Spraying |
Blades Material | High Quality Nylon |
Motor Brand | Yuyun Sanhe Motor |
Voltage | 220V/380V/Customized |
Phase | 1 phase / 3 phase |
Frequency | 50HZ/60HZ |
- Features
- Parameter
- Certification

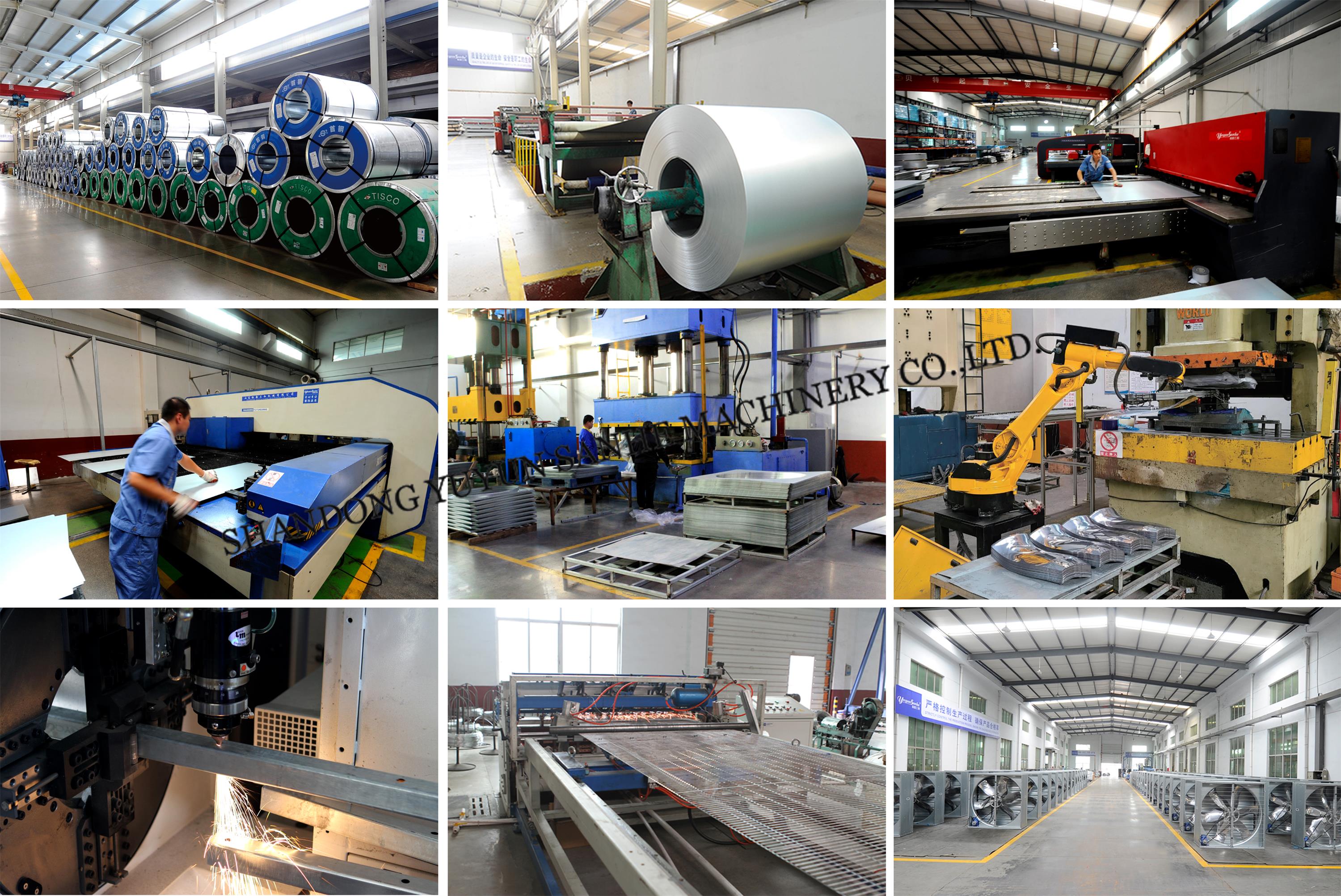

- Workshop

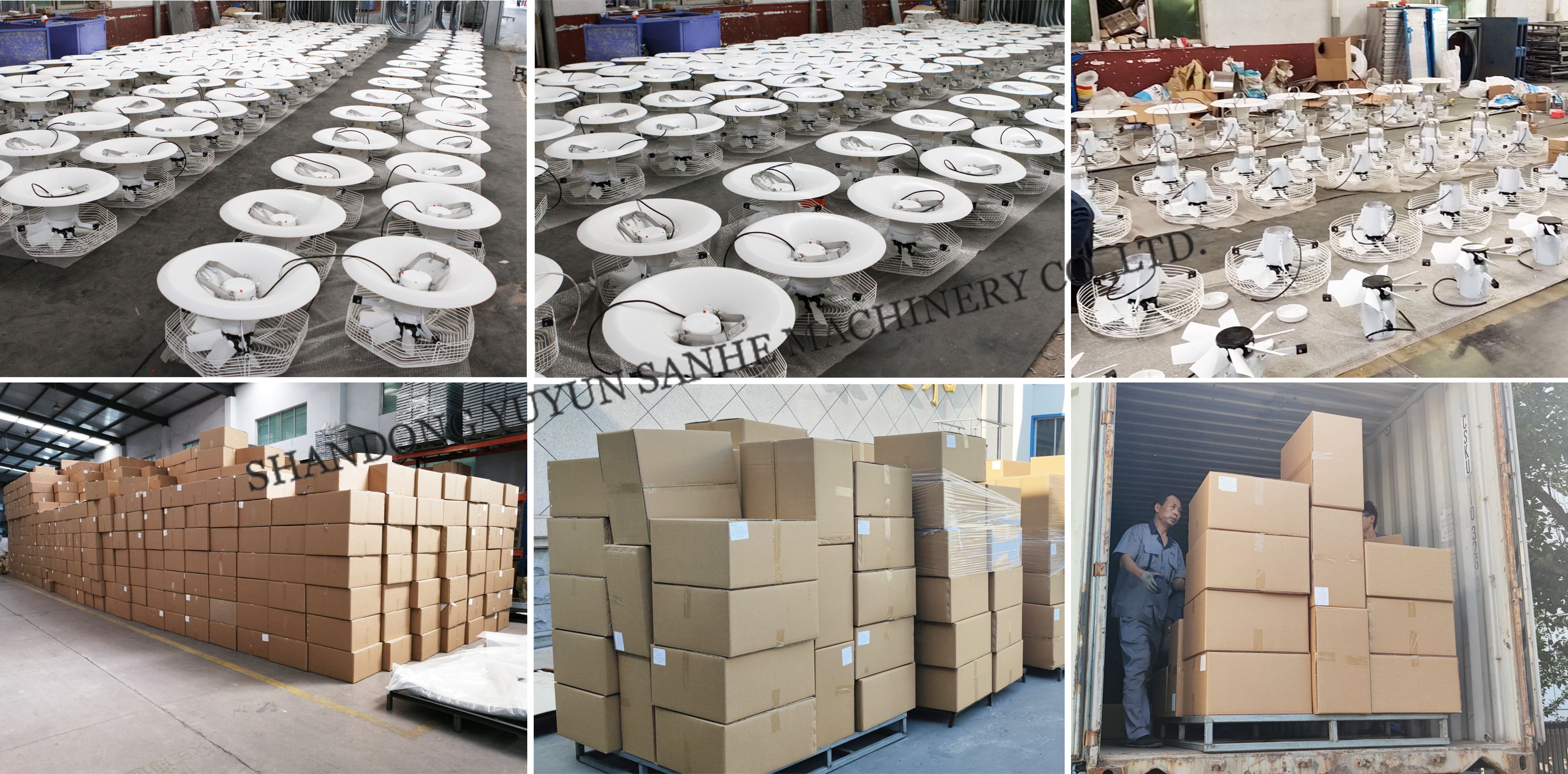

- Packing and Transportation

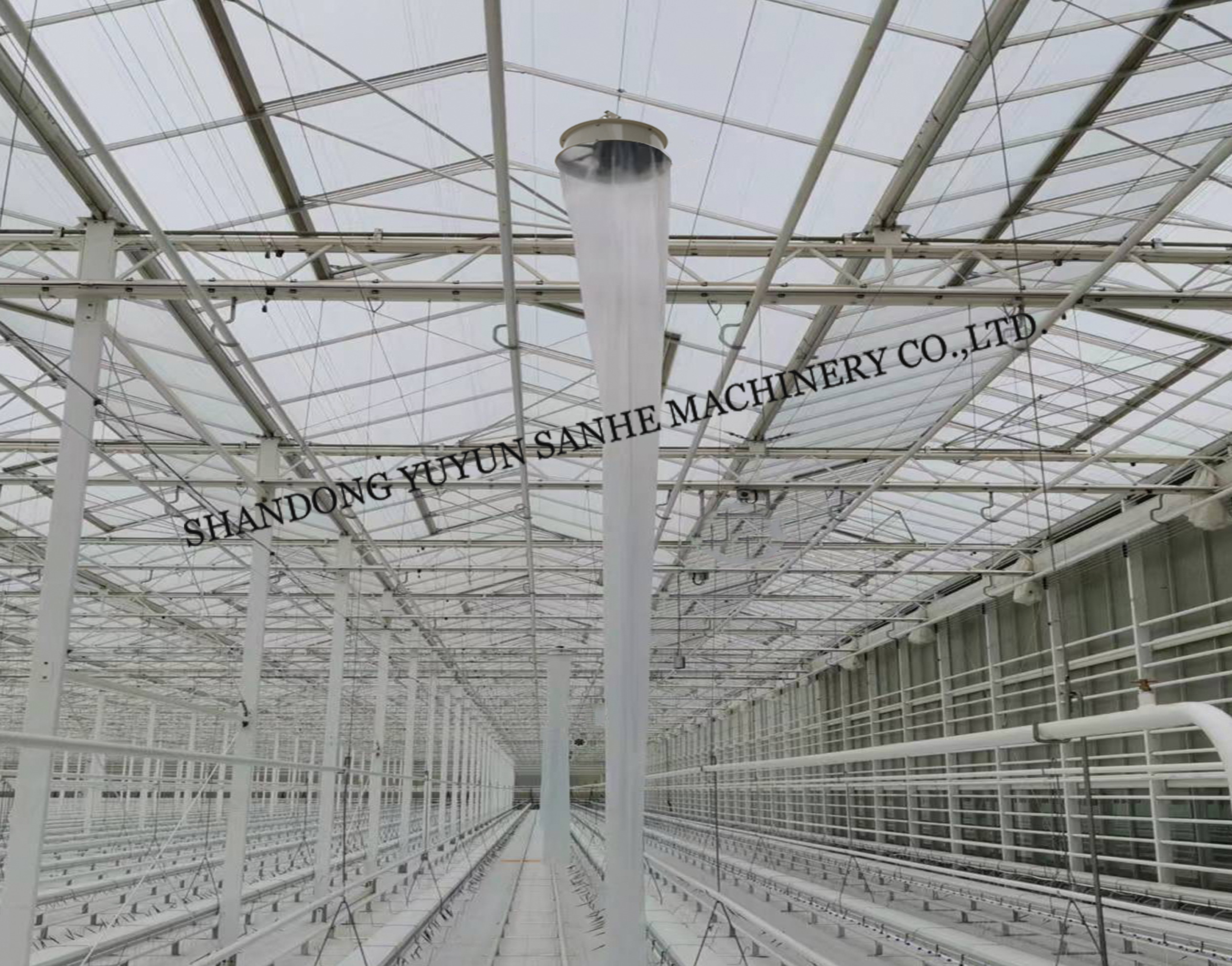

- Installation
Features
-
1. Precise transfer of heat to promote the growth of crop roots.
-
2. Optimize heat distribution in the greenhouse to save energy costs.
-
3. Enhance internal air circulation to promote plant growth.
For Greenhouse

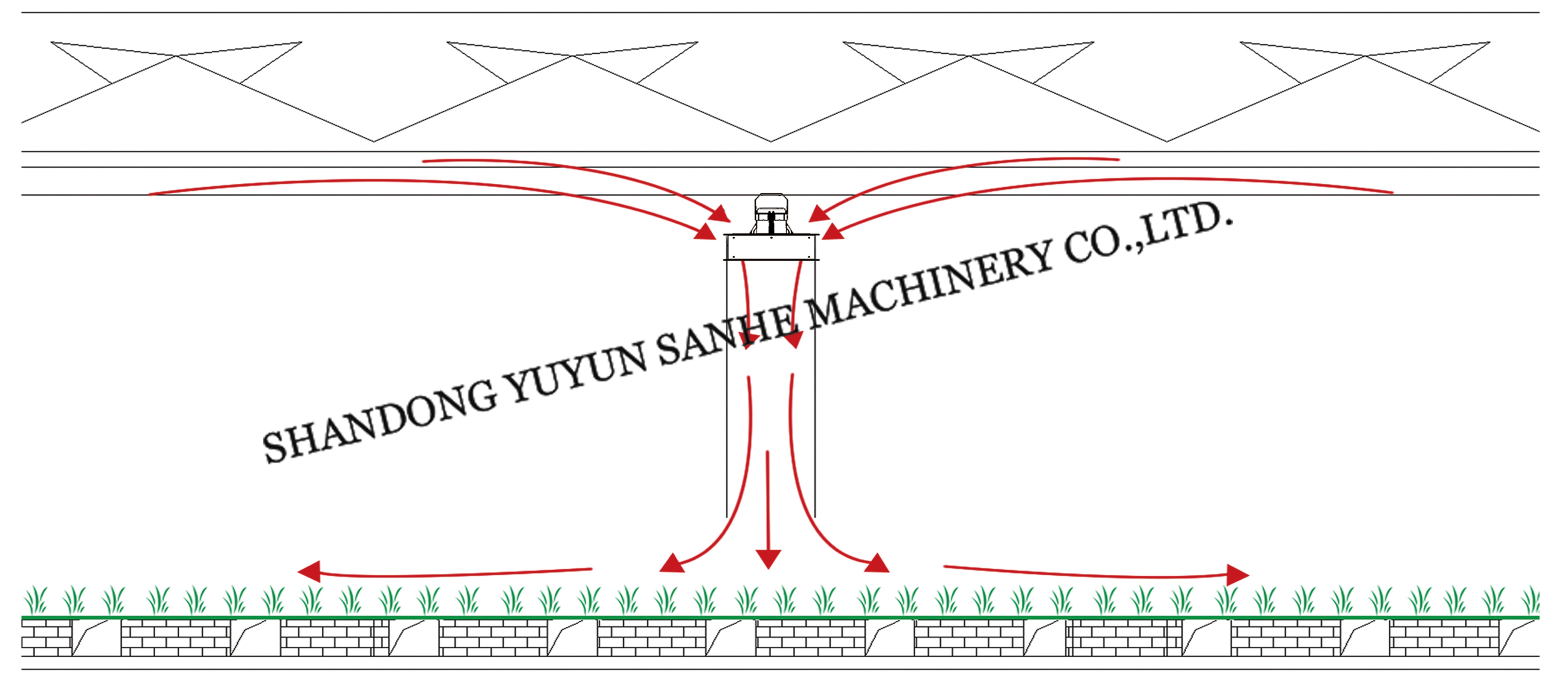

* The air and heat at the top of the greenhouse are transferred to the bottom of the greenhouse by connecting the Φ500mm air supply duct, so that the air in the greenhouse circulates from top to bottom, reducing the temperature difference between the upper and lower sides of the greenhouse, promoting the growth of crop roots, and reducing energy costs. (Air supply duct needs to be purchased separately)
Parameter
Model | Blades Diameter (mm) |
Voltage (v) |
Frenquency (hz) |
Input Power (w) |
Rotate Speed (rpm) |
Air Flow (cmh) |
DJF(g)-4 | 400 | 220/380 | 50 | 370 | 960 | 4500 |
Certification
![1](https://shopcdnpro.grainajz.com/419/upload/product/cc030f85039d06b5ee4acea60cdf854623ecfea3bc6ee70a8d789ce8a546c64f.jpg)
![2](https://shopcdnpro.grainajz.com/419/upload/product/e1b41a906dbd2a4caa5bcee30c224197139a958e6a752cb51c0e55a024f9557a.jpg)
![3](https://shopcdnpro.grainajz.com/419/upload/product/4954acab83b2541208e7ff0deb87cd47956befc043d2629e9dcebe4752094d2a.jpg)
