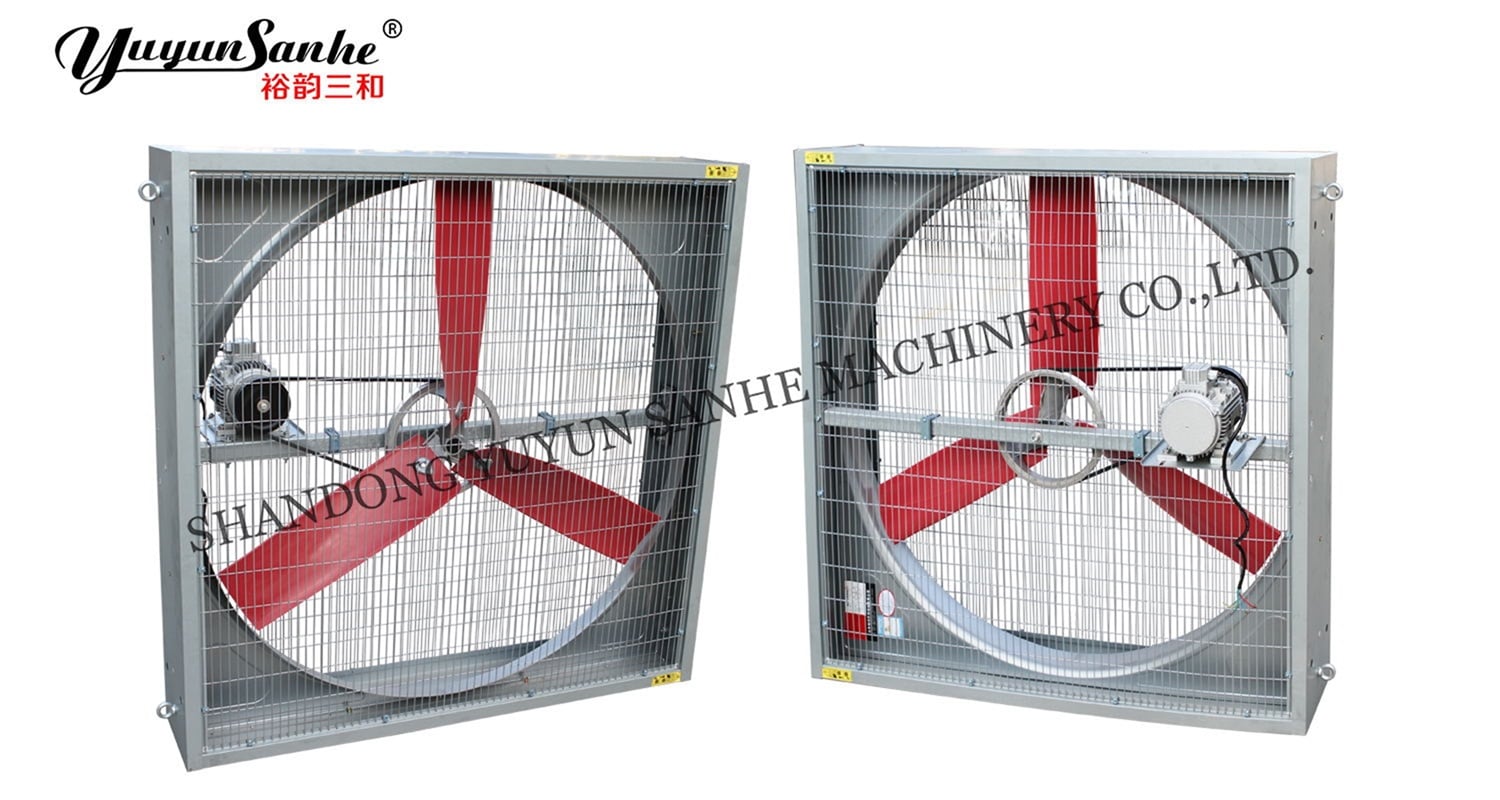

50 inch Dairy Farm Fan Cow House Hanging Fan for Poultry House Ventilation and Cooling

Fan Brand Yuyun Sanhe
Fan Model DJF(b)-2-1380
Outline Size 1380*1380*270mm
Blades Diameter 1270mm
Frame Material Galvanized Steel/304SS
Blades Material High Quality Nylon
Motor Brand Yuyun Sanhe Motor/Siemens Motor/WEG motor/ABB motor
Belt Brand Mitsuboshi Belt
Voltage 220V/380V/Customized
Phase 1 phase / 3 phase
Frequency 50HZ/60HZ
  • Application
  • Parameter
  • Detail
  • Certification
  • Workshop
  • Packing and Transportation
  • Installation

Application

DJF(b)-2 Series Hanging Fan are widely used in agriculture and industry ventilation and cooling. It is mainly used for animal husbandry, poultry house, livestock breeding, greenhouse, factory workshop, textile etc.

Parameter
Model

Blades
Diameter
(mm)
Blades
Rotational
Speed(rpm)
Motor
Rotational
Speed(rpm)
Air Flow
(m³/h)
Total
Pressure
(pa)
Noise
Decibels
(dB)
Input
Power
(W)
Power
Parameter
Height
(mm)
Width
(mm)
Thickness
(mm)
DJF(b)-2-1380(50") 1270 439 1400 44000 56 ≤70 1100 380V/50Hz 1380 1380 270

Note: the voltage and frequency can be customized

Detailed Introduction
  • Fan frame material are all 275g/㎡ hot-dip galvanized steel. The steel coils are directly purchased from the famous Chinese steel company, which not only guarantees product quality but also reduces production costs.
  • The fan blades are made of high quality nylon PA66, beautiful appearance, not rust. Reasonable fan blades angle design, large air volume and high efficiency.
  • Belt pulley is made of high strength aluminum-magnesium alloy by die-casting. Light weight, low vibration, high strength, and no breakage.
  • Four galvanized hoisting rings are added on the fan, which is convenient to install. The angle of the fan can be adjusted arbitrarily so that the fan can achieve good blowing effec.
  • Mitsuboshi belt imported from Japan to guarantee quality and service life.
  • Imported double-row bearing with special waterproof design, high sliength, low noise, free maintenance and long service life.
  • Aluminum-magnesium alloy base, low vibration, firm fixation, beautiful appearance and no rust.
  • Yuyun Sanhe motor, Siemens motor, WEG motor, ABB motor are optional. Voltage and Frequency can be customized.
    Protection Grade: IP55    Insulation Level: F
  • Safe net is made of hot-dip galvanized wire welding and plastic spraying treatment, double protection, no rust.
  • Fan blades have been calibrated by an advanced computer dynamic balance tester, low vibration, low noise and high stability.
  • All fan parts are produced by CNC production, quality assurance, beautiful appearance, leading the industry.
Certification
1
2
3
Workshop

Packing and Transportation

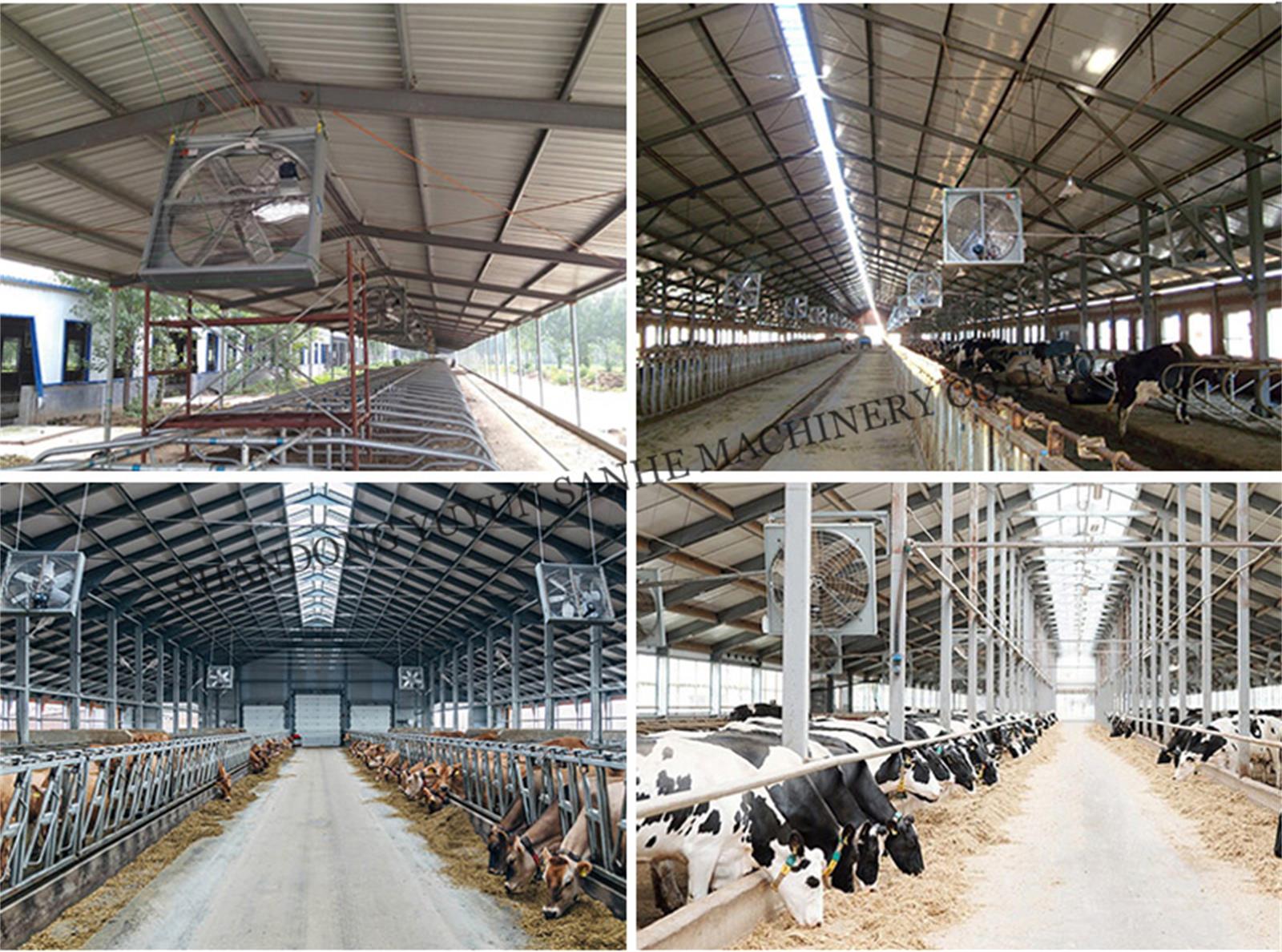

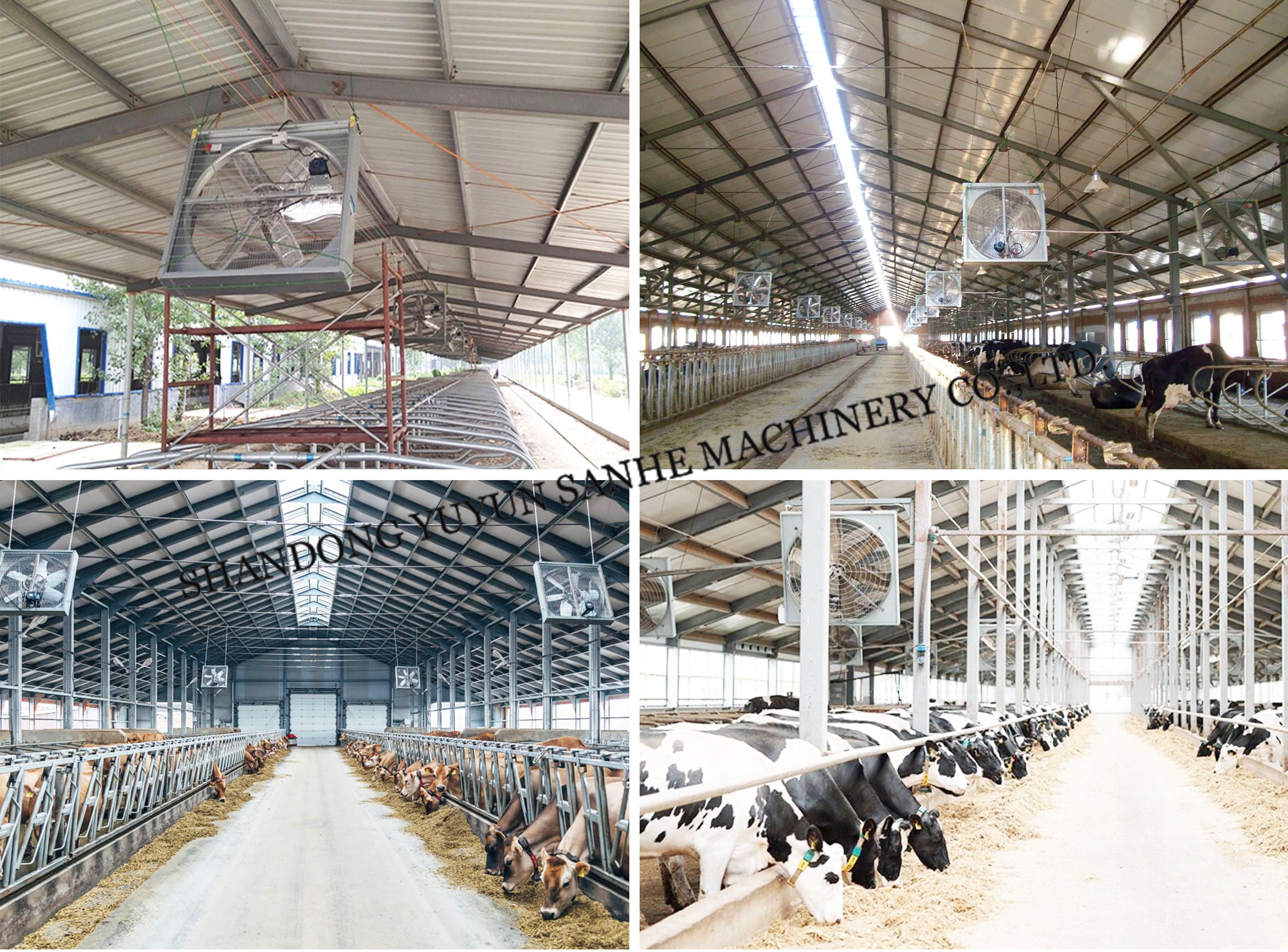

Installation Site

安装现场jpg
